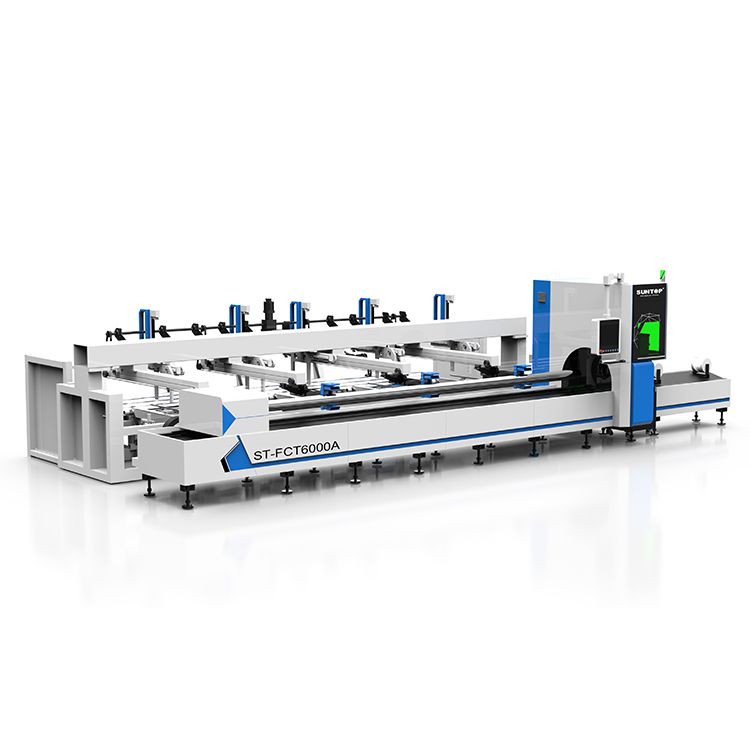

Tube Cutter Laser

Fully automatic loading and unloading laser pipe cutting machine, equipped with a professional pneumatic chuck, has the advantages of automatic centering, stable clamping, high rotation precision, and adjustable clamping force. It is specially designed for laser cutting of metal pipes, which can effectively guarantee product quality, improve production efficiency and reduce production costs.
Product Model: ST-FCT6000A/ST-FCT3000A
Laser power: 1000W-20KW
Tubes length: 3000mm/6000mm/12000mm
Availability:
Quantity:

PDF Export

Details       Product Parameters       Samples       Video

tube cutter laser features-Suntop


Features of tube cutter laser

1. The system includes automatic feeding and automatic unloading. The automatic feeding system is seamlessly connected with the laser pipe cutting machine through the numerical control system to realize the hoisting and feeding of the whole bundle of pipe materials.

2. The front and rear adopt double pneumatic chuck design, and the rear chuck is equipped with an air blowing device to reduce the slag attached to the pipe wall during the cutting process.

3. The clamping strength can be adjusted arbitrarily, and different strengths can bear different loads, so as to avoid the deformation of the thin pipe clamp and the looseness of the thick pipe clamp.

4. The automatic unmanned working cycle, with the help of fast loading and unloading function, makes the machine tool have a high utilization rate.

5. This machine has an automatic tracking system, which can cut not only flat surfaces, but also various uneven surfaces.

6. The intelligent alarm system detects abnormalities in advance, reduces hidden dangers, and doubles the effect of equipment abnormality detection.


Details of tube cutter laser

1. Auto focus laser cutting head

There is no need to manually adjust the focus, the software automatically adjusts the focusing mirror to realize automatic punching and cutting of plates of different thicknesses.

Both the collimating mirror and the focusing mirror are equipped with water-cooling heat dissipation devices, which can reduce the temperature of the cutting head and increase the service life of the cutting head.

2. Fixture design

Pneumatic clamps are designed on both sides, which can be automatically centered, and the adjustable range of the diagonal is 20-300mm.

3. Segmented automatic support installation

The intelligent pipe support design is adopted to solve the deformation problem during the cutting process of long pipes.

4. Fully automatic loading and unloading device

Automatic feeding

After the whole bundle of pipes enters the feeding device, it realizes intelligent material separation and loading, and seamlessly connects with the fiber laser cutting machine to ensure that only one pipe is transported to the conveying arm at a time.

automatic uninstall

The finished product automatically falls into the silo, and the double support bearing assists in supporting the super long tube


Advantages of tube cutter laser

1. Automatic loading and unloading, double the efficiency and greatly save labor costs.

2. The thermal shock of laser cutting pipe is small, not easy to deform, the cutting surface is smooth and beautiful, and no secondary treatment is required.

3. The cost of laser cutting is very low, almost no consumables, maintenance-free, and the life of the laser generator can reach 100,000 hours.

4. Follow-up support system to realize auxiliary loading and support, improve cutting accuracy.

5. Real-time deviation compensation, convenient clamping of pipes, high precision of pipe perforation and cutting.

6. Strong stability The integral built-in drive structure improves transmission accuracy and stability.


Tube cutter laser application

Application materials

Laser cutting, drilling, slotting, arc cutting, engraving, etc. can be performed on square tubes, round tubes, oval tubes, special-shaped tubes, angle steel, channel steel, H-shaped steel, etc. It is suitable for cutting stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickled steel, galvanized pipe, metal copper, brass and other rare metal pipes.


Application industry

Widely used in furniture industry, construction industry, kitchen and bathroom supplies, lighting equipment, automobile manufacturing, medical equipment, hardware processing, fitness equipment, mold laser cutting, aerospace, machinery, handicrafts, tool processing, decoration and other industries.


Parameters of tube cutter laser

Model

ST-FCT6000A/ST-FCT3000A

Laser power

1000W-20KW

Laser wavelength

1064nm

Elector-optical conversion efficiency

25%-30%

Cutting thickness

0.5-30mm (depend on the actual laser power)

Cutting seam width

0.1-1.3mm   (depend on the actual thickness of metals)

Repeated positioning accuracy of the machine tool

±0.02mm/1000mm

Positioning accuracy of the machine tool

±0.03mm

Max. idle moving speed

100meter/min

Max. acceleration

1.2G

Max. loading weight

3000KG

Single pipe Max. weight

100KG (when air pressure is 6 bar, every meter≤16KG)

Tailing length

≥160mm

Pipe processing range

20mm≤Round pipe≤210mm, square pipe (20mm-150mm)

Voltage and frequency

Three phase 380V/50Hz or 60Hz

Machine weight

9000KG

Machine dimension

12000*2450*2400mm (L*W*H)
