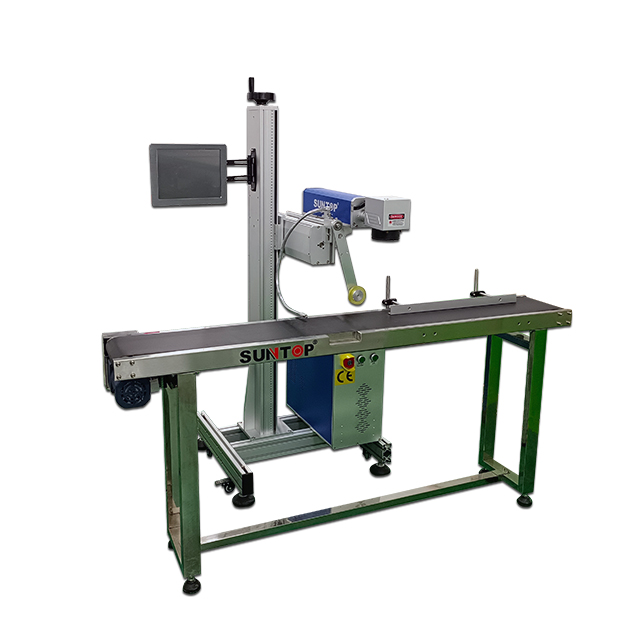

Laser Wire Marking Machine

The high-speed continuous marking model specially designed to improve productivity, adopts high-performance laser light source, stable performance, fast processing efficiency, fast marking speed on the production line, and can meet the needs of mass production.
Product Model: ST-FL20F/ST-FL30F/ST-FL50F/ST-FL100F
Laser power: 20W/30W/50W/100W
Working area:110*110mm/150*150mm/200*200mm/300*300mm
Availability:
Quantity:

Details       Product Parameters       Samples       Video

laser wire marking machine features-Suntop

Features of laser wire marking machine

1. It has the characteristics of short start-up time, narrow light pulse, high peak power, wide repetition frequency range, and no shadow and dotted line phenomenon in special material processing, which can meet the marking needs of most users.

2. Designed for high-speed production lines, it can be flexibly installed and used in conjunction with production lines. The frame can be adjusted by moving up and down, left and right, and the marking head can be selected for marking at 360°.

3. Adopt the industry's compact laser marking head to achieve simple integration, reduce installation costs, and improve positioning flexibility.

4. Built-in air cooling, no maintenance required. Intelligent touch screen control system, no need for computer, easy to use.

5. Professional industrial laser source, faster marking speed, good marking consistency, high reliability, and can work 24 hours a day.

6. High electro-optic conversion efficiency, low power consumption, and a service life of up to 100,000 hours, saving a lot of processing costs for customers.


Details of laser wire marking machine

1. Brand laser

Using famous brand MAX, Raycus, JPT lasers, the light output is stable, the light spot is delicate, and the focusing effect is strong.

2. High-speed galvanometer

High-precision laser scanning vibrating head, fast and clear, high stability.

3. High Lens Lens

The use of quartz high-transparency coating field lens greatly improves the light-gathering ability of the edge beam, high light transmittance, and good marking effect.

4. Touch screen industrial computer

Touch screen experience, running without stuttering, and has high anti-magnetic, dust-proof, impact-proof and strong anti-interference ability, and can work continuously for a long time.

5. Flying marking system

Based on the development of marking on the fly, it is very easy to edit any file pattern, etc., it can automatically produce batch numbers and serial numbers, and the software parameters can be modified flexibly.

6. Power supply

With reliable power supply, the machine source runs stably and improves the output efficiency of the production line.

laser wire marking machine details-Suntop


Conveyor belt (optional)

laser wire marking machine conveyor belt-Suntop

1. There are many specifications and varieties. Users can choose different hosts according to their needs.

2. Simple structure, easy maintenance, low energy consumption and low cost of use.

3. Various structural forms, baffles, side baffles and other accessories can be added to the conveyor belt to meet various process requirements.

4. Corrosion-resistant, wear-resistant, anti-oxidation, not easy to damage, with a protective film on the surface.

5. The conveying is stable, there is no relative movement between the material and the conveyor belt, which can avoid the damage of the conveyed material.


Support customization

● According to the different needs of customers, it can match optical fiber, CO2, UV, RF and other models and fully automatic assembly line workbench, meet the flight standard system required by customers, realize assembly line operation, and improve production efficiency.

● The touch screen can be configured according to customer needs. High resolution, clear display, supports 14 languages such as English, Spanish, German, French, Italian, etc., very easy to use.

1. The machine adopts a special split structure, the laser head has an automatic induction function, and the workpiece is marked automatically after passing the laser head.

2. It is suitable for mass marking operations on the production line. It is suitable for marking serial numbers, dates and logos on pens, metals, craft gifts, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, pharmaceutical packaging, printed plates, shell plates, etc.

Laser wire marking machine application

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.


Application industry

Metals, alloy, oxide, ABS, epoxy resin, printing ink, etc, which are widely applying for electronics, jewelry, automobiles, communication products, phone keys, plastic translucent keys, jewelry products, key chain, electronic components, integrated circuits (IC), electrical appliances, buckles cookware, stainless steel products and other industries.


Parameters of laser wire marking machine

Model

ST-FL20F

ST-FL30F

ST-FL50F

ST-FL100F

Laser power

20W

30W

50W

100W

Max. marking range

110*110mm/150*150mm

200*200mm

300*300mm

300*300mm

Depth of single marking

0.01mm

0.03mm

0.06mm

0.08mm

Same pattern marking efficiency

10s

7s

4s

2s

Whole machine power

600W/h

800W/h

1000W/h

1200W/h

Laser wavelength

1064nm

Laser source

MAX Brand ( Raycus can be choosed)

Control software

EZCAD

Cooling mode

Air Cooling

Working accuracy

±0.002mm

Marking speed

0-7000mm/s

Repetition frequency

20-100KHz

Minimum font for marking

0.15mm

Graphic format supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Working voltage

220V±10% 50/60 Hz

Applicable material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Net weight/gross weight (KG)

75KG / 100KG

Machine dimension

450*750*1400mm (L*W*H)
