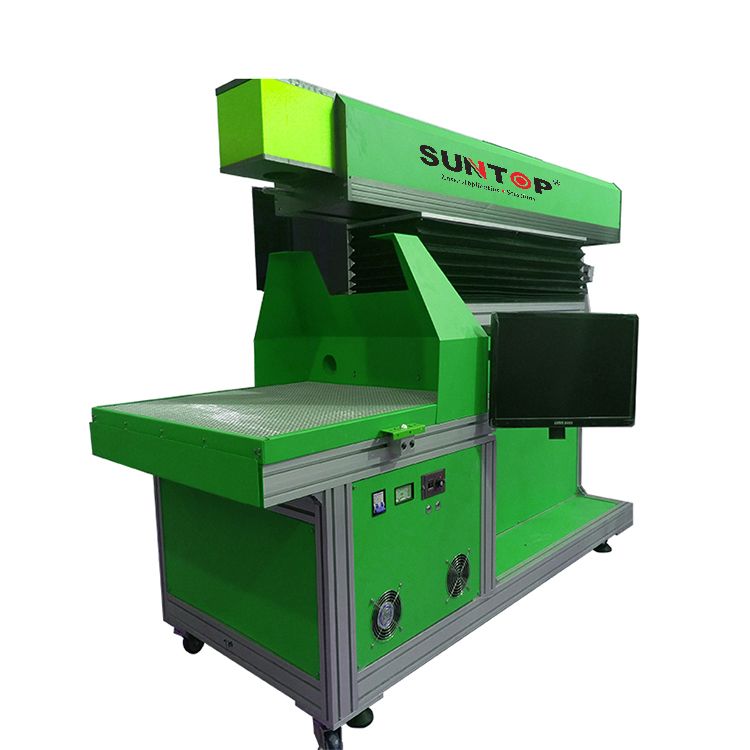

3D Dynamic Focusing CO2 Laser Marking Machine

3D Dynamic focusing CO2 laser marking machine adopt the GSI JK laser tube, with patent negative high pressure technology from which the Max. marking range up to 800*800mm.
Availability:
Quantity:

Product Details          Product  Parameters        Samples        Video

3D dynamic focusing CO2 laser marking machine features-Suntop

CO2 dynamic focusing laser marking and engraving machine features

Machine adopt the GSI JK Laser tube, the output laser power up to 400W. Adopt negative high pressure technology, Max, engraving range up to 800*800mm.


It's controlled by PC, the laser beam of 10.64um is used to work on the surface of the work-piece according to the predeterminded track through beam expansion, focusing, and later through the control of deflection of the galvanometer, so that the working surface is gasified to achieve marking effect.


The 3D dynamic CO2 laser engraving machine produced by SUNTOP LASER has good beam mode, stable system performance and maintenance FREE, which is suitable for industrial processing sites with large quantities, multiple varieties, high speed and high precision.


Professional leather, fabraic, paper and shoes engraving software, optimized the cutting path, greatly save tedious drawing time.


Double air duct and pipe, real ensure strong wind, completely improve the leather and fabric laser processing station environment, while meeting the leather, fabric, paper cleaning needs.


Speical type of laser large size processing, humanized design, reduce fatigue, improve efficiency, stable and strong.


Rapid cutting technology, 30%-50% faster than the other similar machines under the same conditions (same power, same materials, same pattern etc.)


Exclusive digital scanning technology, anti-interference, temperature drift compensation function, so that it has a larger engraving and marking range, finer engraving quality and faster processing speed.


Unique depth control technology (laser rapid imaging technology, laser relief technology, etc.) light and shadow/black and white/light and dark/depth/control all in the master.


Break the lilmitation of traditional laser processing plane.


Suntop Laser CO2 dynamic focusing laser marking and engraving machine the application materials:

It suitable for engraving and marking on clothing, jeans, wood, acyrlic, leather, rubber, cardboard, paper, plastic, clothing accessories, paper gifts, advertising, etc.


The main parameters of the 3D dynamic focusing CO2 laser marking machine


Model

ST-LCO2110

Laser power

110W/130W/150W/180W   (Optional)

Marking Method

3D Dynamic focusing

Software

3D marking software

Scan speed

Max.10000mm/s

Min. facula

0.23mm

Z stroke

280mm

Power supply

220V/50HZ or 110V/60HZ


3D dynamic large marking size CO2 laser marking machine the application industries photos

3D dynamic focusing CO2 laser marking machine samples-Suntop
