Details Product Parameters Video
1. Imported high-precision double servo drive and guide drive, HIWIN embedded guide, stable drive, high precision.
2. The frame, crossbeam and table are welded as a whole, made according to the standard large machine, stress relieved and annealed, rough machined and then treated by vibration aging. It can completely eliminate the stress of welding and processing, maintain high strength and high precision, and keep normal use for 20 years without deformation.
3. The X and Y axes are equipped with Japanese servo motors with high precision, high speed, high torque, high inertia and stable performance, which ensure the high speed and acceleration of the whole machine.
4. The mechanical transmission part has been tested and calibrated by laser interferometer for many times to ensure that our machines can maintain good and stable accuracy even after several years of use, which is very important to the end users.
5. Adopted French Schneider AC servo system, with high power, stronger torque force, more stable working speed and faster speed.
6. Adopt professional Swiss Raytools laser cutting head, imported optical lens, smaller focusing spot, more accurate cutting line, ensure higher efficiency and better processing quality. Equipped with non-contact automatic following function to ensure the best focus and cutting effect.
7. Fiber laser emission, with brand-name laser generator, flexible processing, to achieve high precision cutting for every point.
8. Professional laser cutting CNC control system, connected with computer, easy to operate, French Schneider AC servo system, high power, stronger torque force, more stable working speed and faster.
1. High precision: laser cutting machine positioning accuracy 0.05mm, repeat positioning accuracy 0.03 mm.
2. Laser cutting machine slit narrow: the laser beam is focused into a very small spot, so that the focal point reaches a very high power density, the material is quickly heated to the degree of vaporization, evaporation to form a hole. As the beam moves linearly relative to the material, the hole is continuously formed into a very narrow width of the slit, the width of the cut is generally 0.10-0.20mm.
3. Laser cutting machine cutting surface smooth: the cutting surface without burr, the surface roughness of the kerf is generally controlled within Ra6.5. 4.
4. Laser cutting machine speed: cutting speed up to 10m / min maximum positioning speed of up to 30m / min much faster than the speed of wire cutting.
5. Laser cutting machine cutting quality: no contact cutting, cutting edge by the heat is very small, basically no thermal deformation of the workpiece, completely avoid the collapse of the edge formed when the material punching and shearing, cutting seam generally does not require secondary processing.
6. No damage to the workpiece: the laser cutting head does not come into contact with the surface of the material, ensuring no scratching of the workpiece.
7. Not affected by the shape of the workpiece: laser processing is flexible, can process any graphics, can cut the pipe and other special profiles.
8. Save material: Using computer programming, it can cut different shapes of products to maximize the utilization of materials.
9. Safe and environmental protection: laser processing has less waste, low noise, clean, safe and pollution-free, which greatly improves the working environment.
Application materials
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating, zinc plate, metallic copper, brass and other kinds of metals.
Application industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automotive, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, crafts and gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing and other various manufacturing and processing industries.

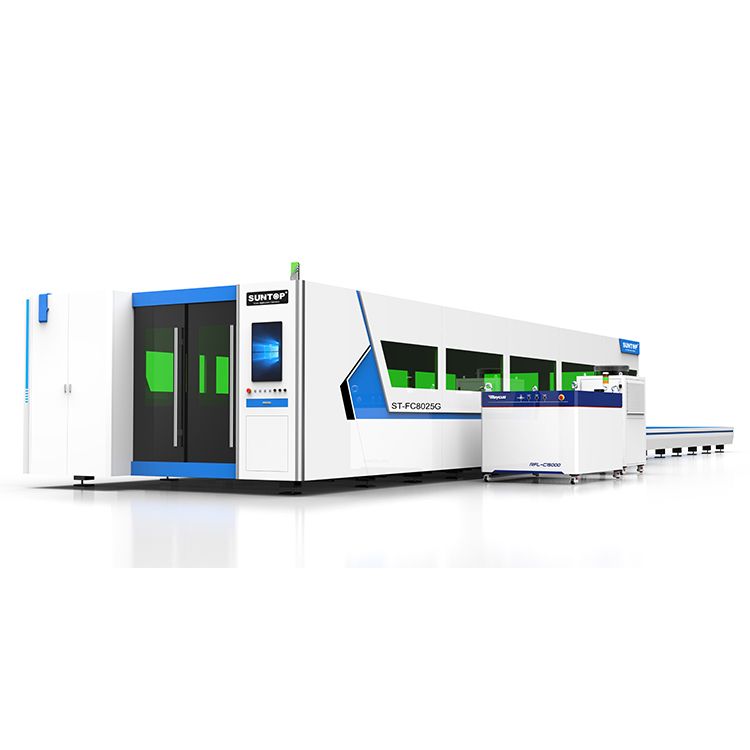

Model | ST-FC3015G/ST-FC4020G/ST-FC1560G/ST-FC6020G/ST-FC6025G |
Table Max. cutting size | 1500*3000mm (4000*2000mm, 1500*6000mm, 2000*6000mm, 2500*6000mm) |
Laser power | 1000W-20KW |
Transmission system | Double rack & pinion and servo drive |
Transmission | High precision screw guide transmission |
Laser wave length | 1064nm |
Laser source | Raycus Brand (MAX, IPG can be choosed) |
Maximum speed | 120m/min |
X.Y axis location accuracy | ±0.01mm |
X.Y axis repeat location accuracy | ±0.01mm |
X.Y axis max moving speed | 30m/min (also according to kind of materials and thickness) |
Cooling mode | Water Cooling |
Maximum acceleration | 0.5G |
Equipment power | 8KW(not include laser generator and chiller) |
Working environment | 0-45℃ ,Humidity ≤ 80%, non-condensing |
Graphic format supported | AI, PLT, DXF, BMP, DST, DWG, DXP |
Working voltage | 220V±10%, 50-60Hz / 380V±10%, 50-60HZ |
Applicable material | All metal (stainless steel, brass, aluminum, titanium steel, etc) |
Machine weight | 7500KG |
Machine dimension (L*W*H) | 8850*3210*2100mm |
