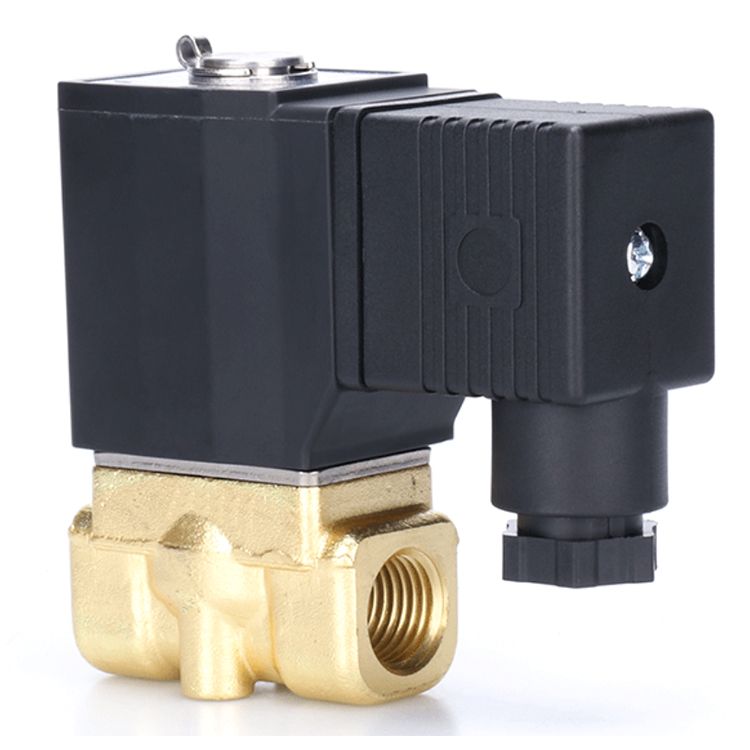

Magnetic Valve

Availability:
Quantity:

Product description:

1.Suitable for controlling the liquid, gas, light oil (≤ 20CST) and other media, the use of the structure of direct-acting, zeropressure to open the valve, flow rate, and high reliability.

2.Bodymade of brass (forging), the series has a variety of types, you cancontrol needs.


Coil Parameters:

AC220V 110V 50Hz/60Hz DC 24V 12V

Plastic coil IP65 /ClassF

Standard Junction Box

Hulled coil IP54 /ClassF

Leaded /Available for other voltage coil

Plastic coil: DN2.5-25mm AC20VA DC 18W

                    DN35-50mm AC40VA  DC 30W

Hulled coil: DN2.5-5mm AC16VA DC16W

DN10~25mm AC 20VA DC 28W

DN35~50mm AC 46VA DC 30W


Product features:

Suitable medium: liquid, water, hot water, gas, mashgas, oil etc (<=20CST)

Medium temp: -5℃-80℃

Action type: direct acting type, step by step direct acting type

Working Status: Normally Closed Normally Open

Valve body material: brass(casted), cast iron, SS304

Daphragm sealing material: NBR, EPDM, VITION.

Coil Protection level: Sauare Din Coil IP65 Round Coil IP54
